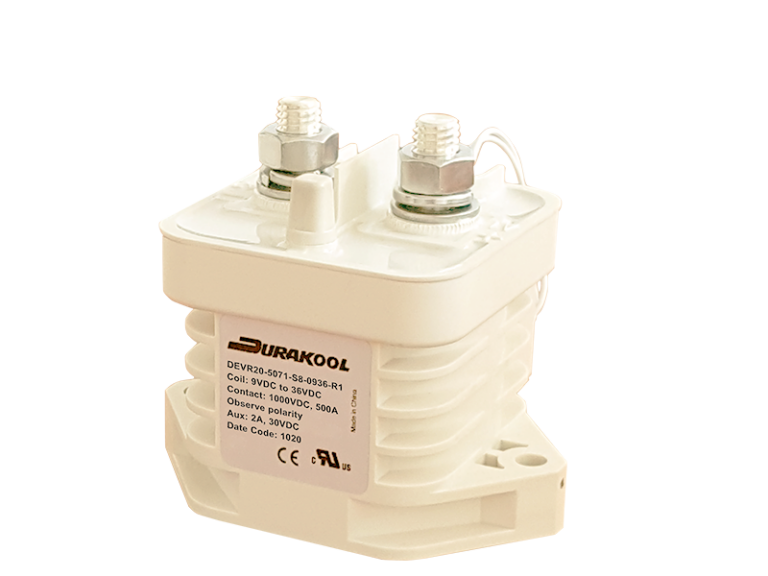

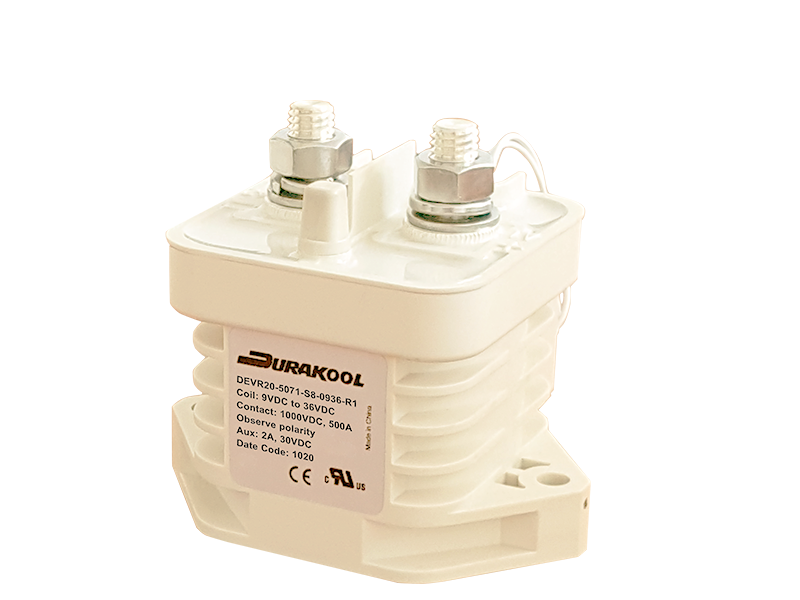

DEVR20-5091-S8-0936-R1
An automotive, magnetic arc blowout, HVDC 500A 1000VDC Contactor, with a maximum breaking current of 2000A. T2+Ag contacts sealed in inert gas and female M6 or male M8 power terminals. Coil economiser and auxiliary contact option. UL recognised.
DOWNLOAD Durakool-DZ-Sockets-Catalogue
Share:
| Number of poles | 1 pole |
| Operating Voltage | up to 100VDC |
| Coil voltage | 9 – 36 VDC |
| Conventional thermal Current, Ith | 200Amps |
| Short time withstand current | |
| Mechanical Durability (3600 operations an hour) | |
| Electrical Durability | |
| Different versions available: | |
| DLVC400M-4071-B8-1012-R1 | 400Amps, <120VDC, Bottom mounted, with AUX contact, 12VDC coil. |
| DEVR20-5071-S8-0936-R1 | 200Amps, <1000VDC, Bottom mounted, with AUX contact, 9-36 VDC coil. |
| Size, W × H × D( mm ) | |
| Weight | |
| Certification | CE, UL, cUL, |
